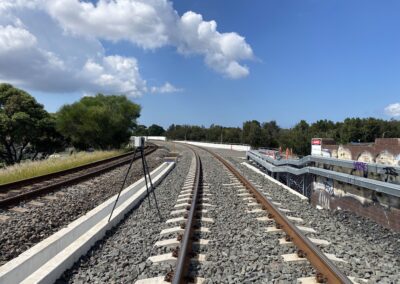

The Botany Rail Duplication duplicated the remaining 2.9-kilometre single-track section of the Port Botany freight rail line between Mascot and Botany — a critical bottleneck on Sydney’s freight rail network. Fully funded by the Australian Government and delivered by John Holland for ARTC, the project included new bridge structures over Southern Cross Drive and Mill Pond Creek, reconstruction of the existing Botany Road bridge, embankment works, track duplication and realignment, new rail crossovers, bi-directional signalling upgrades, and drainage and utilities works. Located in a tight urban corridor adjacent to Sydney Airport, the duplication increased freight rail capacity from approximately 20 trains per day to around 45 trains per day, enabling each train to remove approximately 54 trucks from Sydney’s roads.

RCS Scope

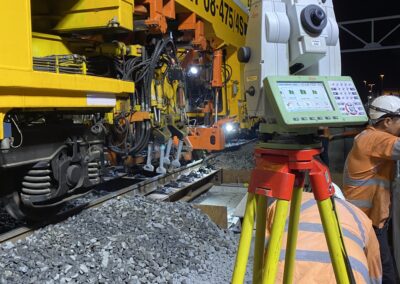

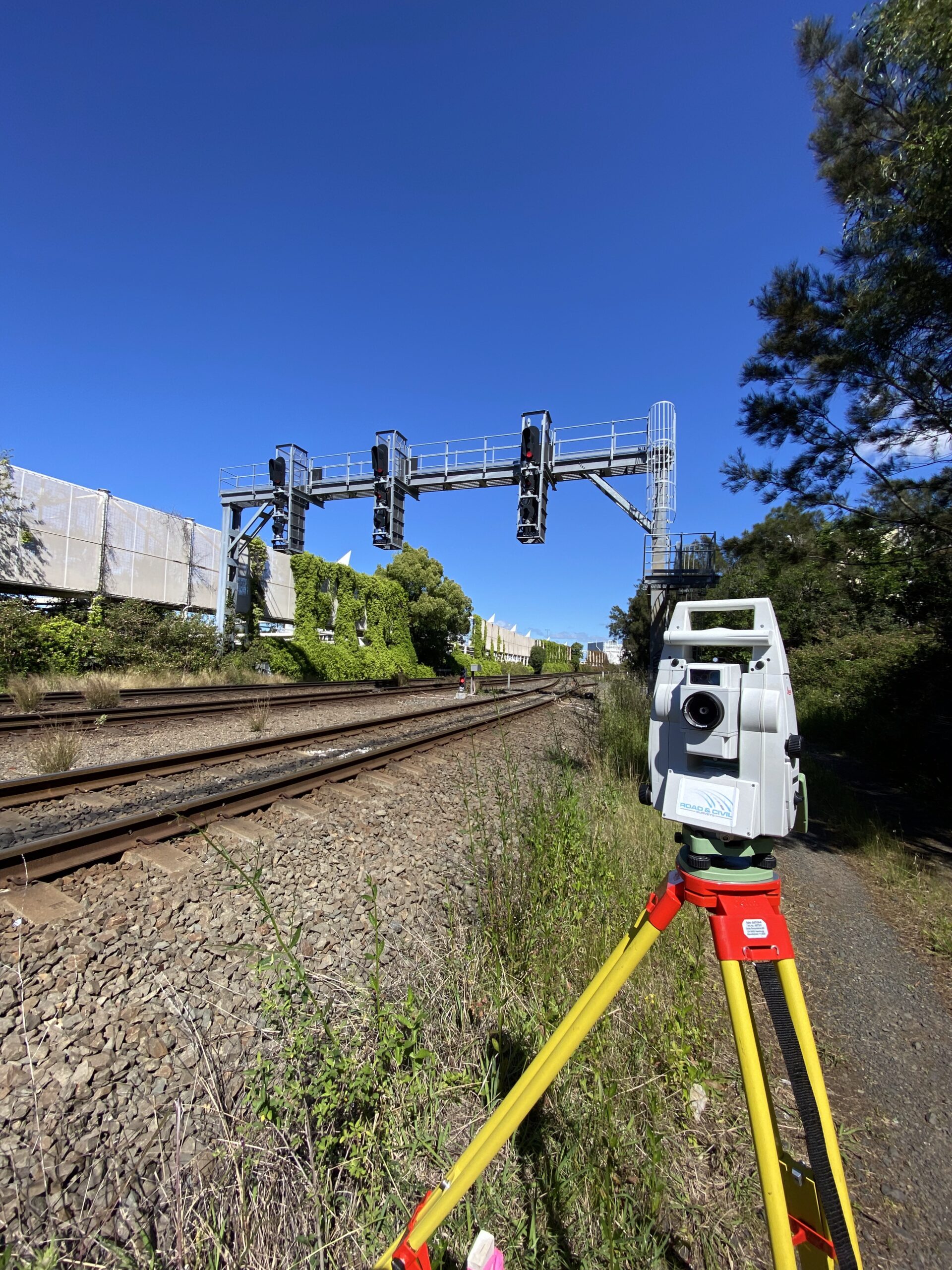

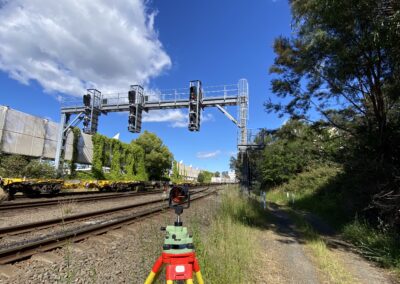

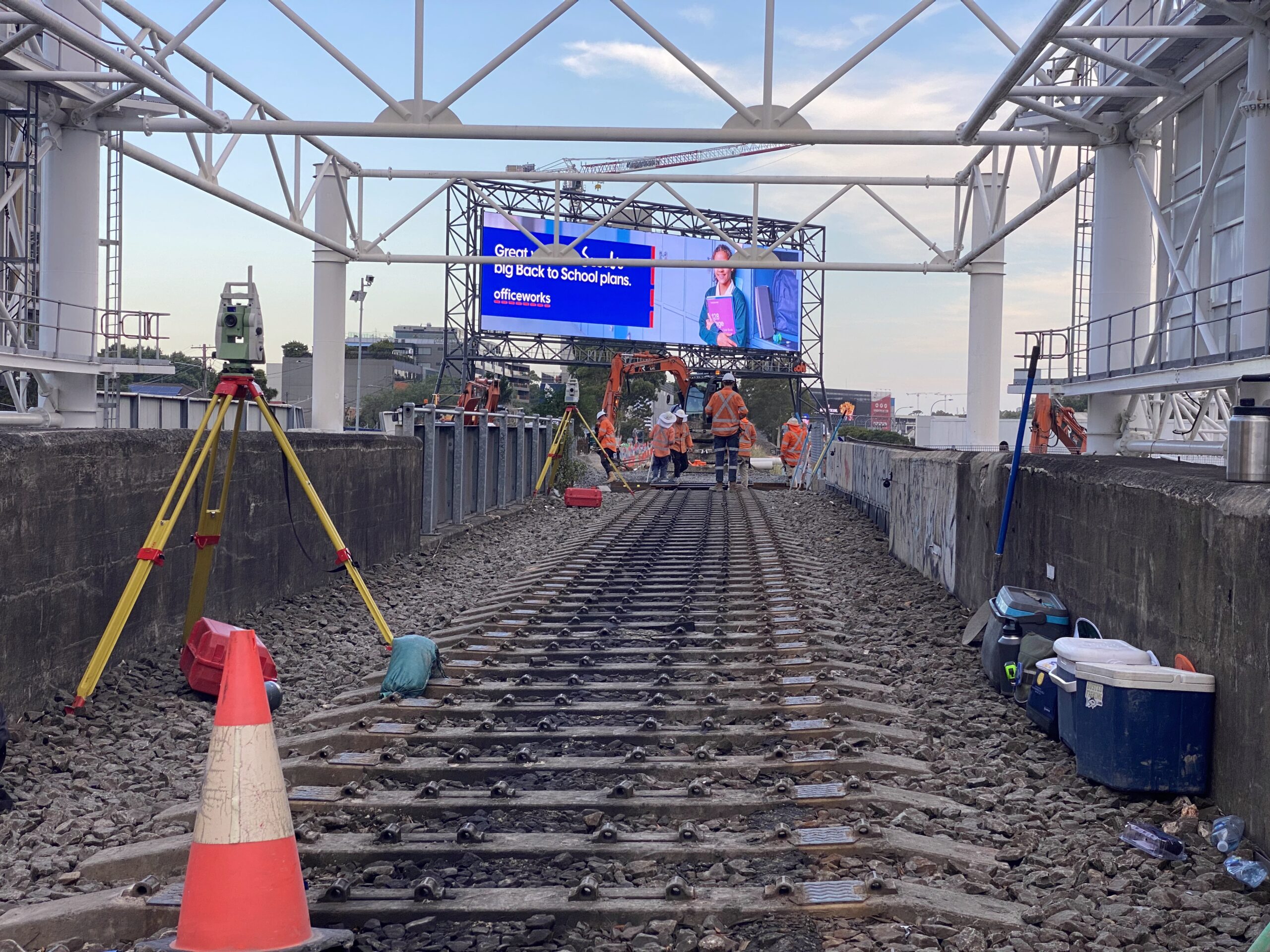

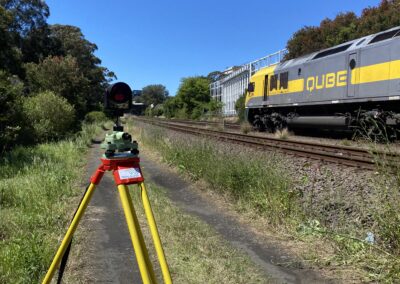

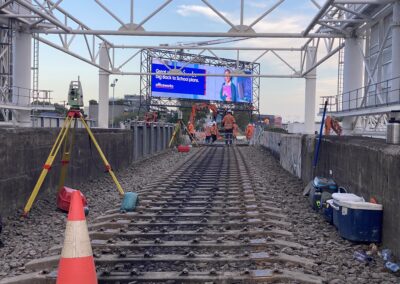

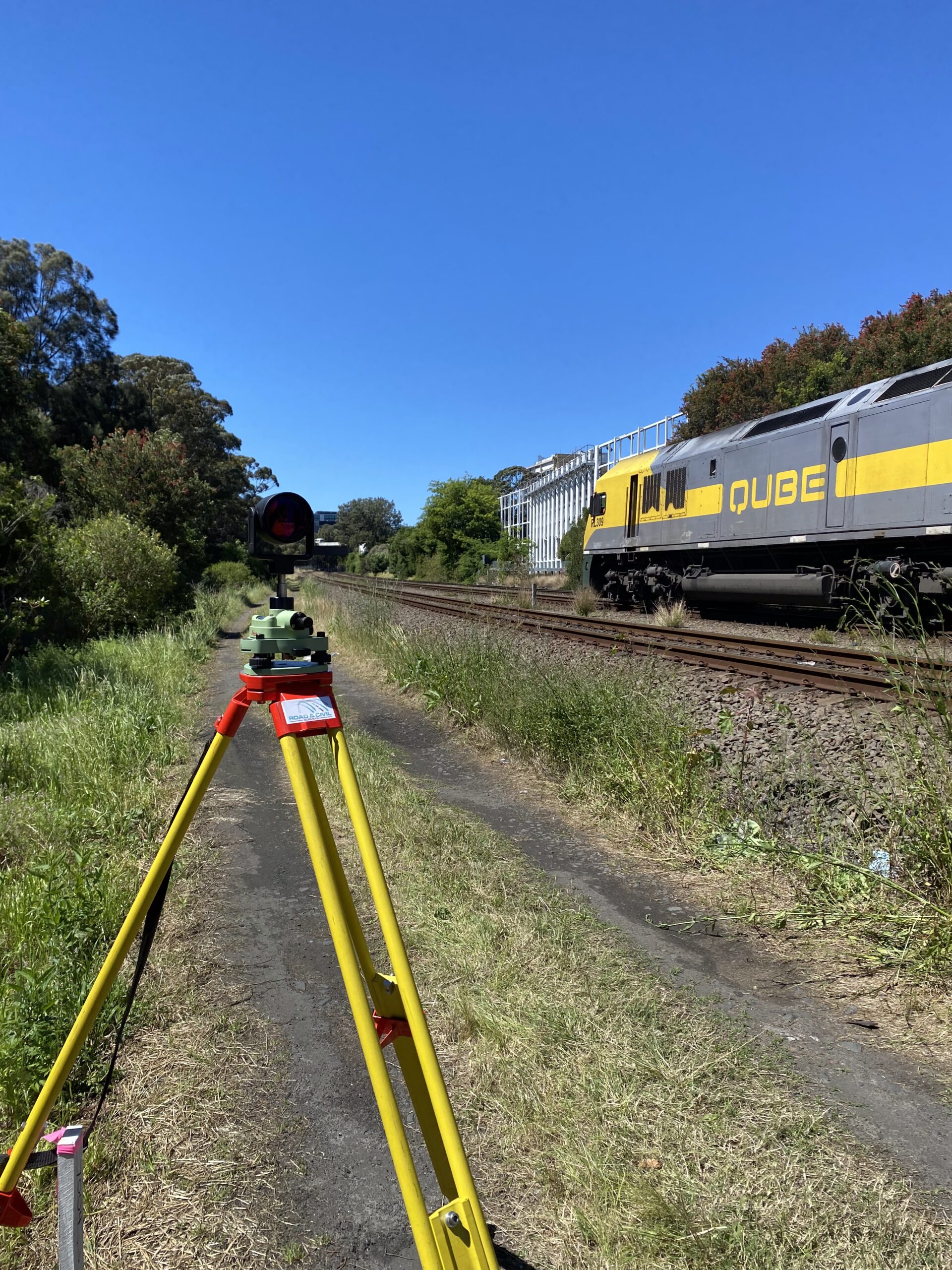

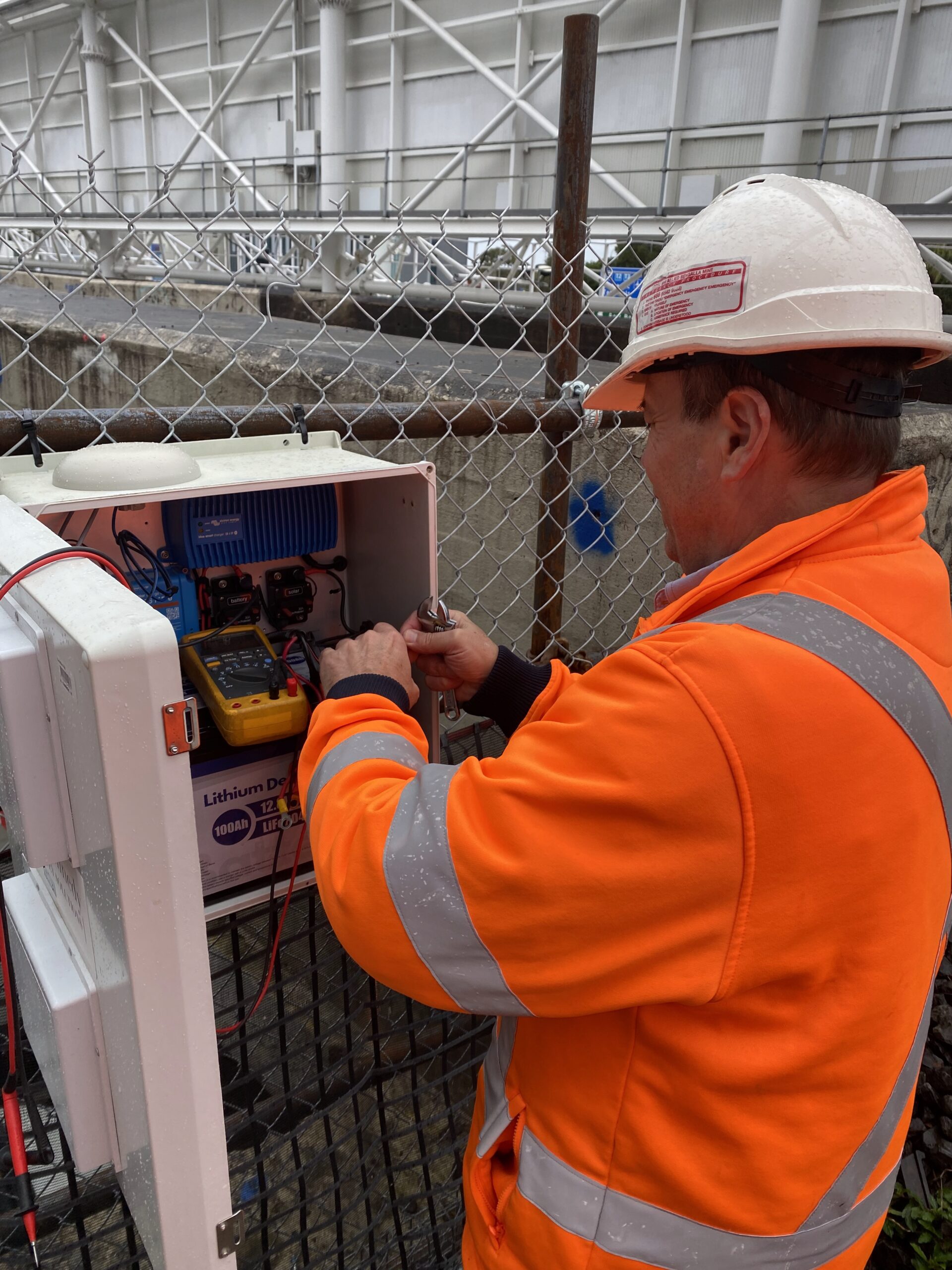

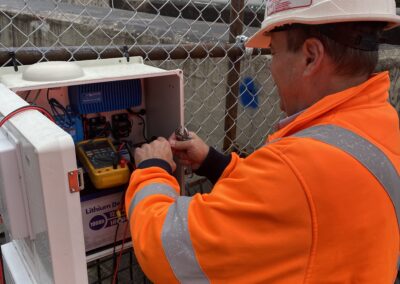

Road & Civil Surveys provided comprehensive survey support across the full duration of the project, with 10+ surveyors embedded on site and the capacity to surge to 22 surveyors during rail possessions. Scope covered rail track duplication and alignment surveys, bridge structure surveys across Southern Cross Drive, Mill Pond Creek and Botany Road, earthworks and embankment surveys, drainage and utilities infrastructure, and signalling infrastructure set-out. RCS established and maintained the project control network, provided data calculations and EOM reporting, delivered 3D laser scanning, and completed rail geometry and as-built surveys to ARTC standards. Work was carried out across a live freight rail corridor in a tight urban environment adjacent to Sydney Airport, with night shifts and rail possessions demanding rapid mobilisation of large survey crews across multiple work fronts simultaneously.

Value Driven

Port Botany Rail was a defining project for RCS — the first engagement with John Holland and the project that established the company as a credible rail survey provider capable of delivering at scale. The ability to surge from a 10+ embedded crew to 22 surveyors during rail possessions demonstrated a level of resourcing depth that few survey firms can match. During possessions, every hour counts — and having 22 surveyors deployed across multiple fronts simultaneously meant the project could maximise productive work within tight closure windows without survey becoming a bottleneck. Maintaining accuracy in a constrained urban rail corridor adjacent to Sydney Airport, across multiple bridge structures being constructed concurrently, required disciplined coordination and consistent field methodology. Delivering rail geometry and as-built surveys to ARTC standards provided confidence that the duplicated track met the operational and safety requirements of a national freight network. The John Holland relationship established on Port Botany Rail has since carried through to the AWRC, M7–M12, and Beerburrum to Nambour — making this project the foundation of one of RCS’s most significant client partnerships.

• Construction surveying for rail track duplication, alignment, earthworks, and embankments
• Bridge structure surveys (Southern Cross Drive, Mill Pond Creek, Botany Road)
• Drainage and utilities infrastructure surveys

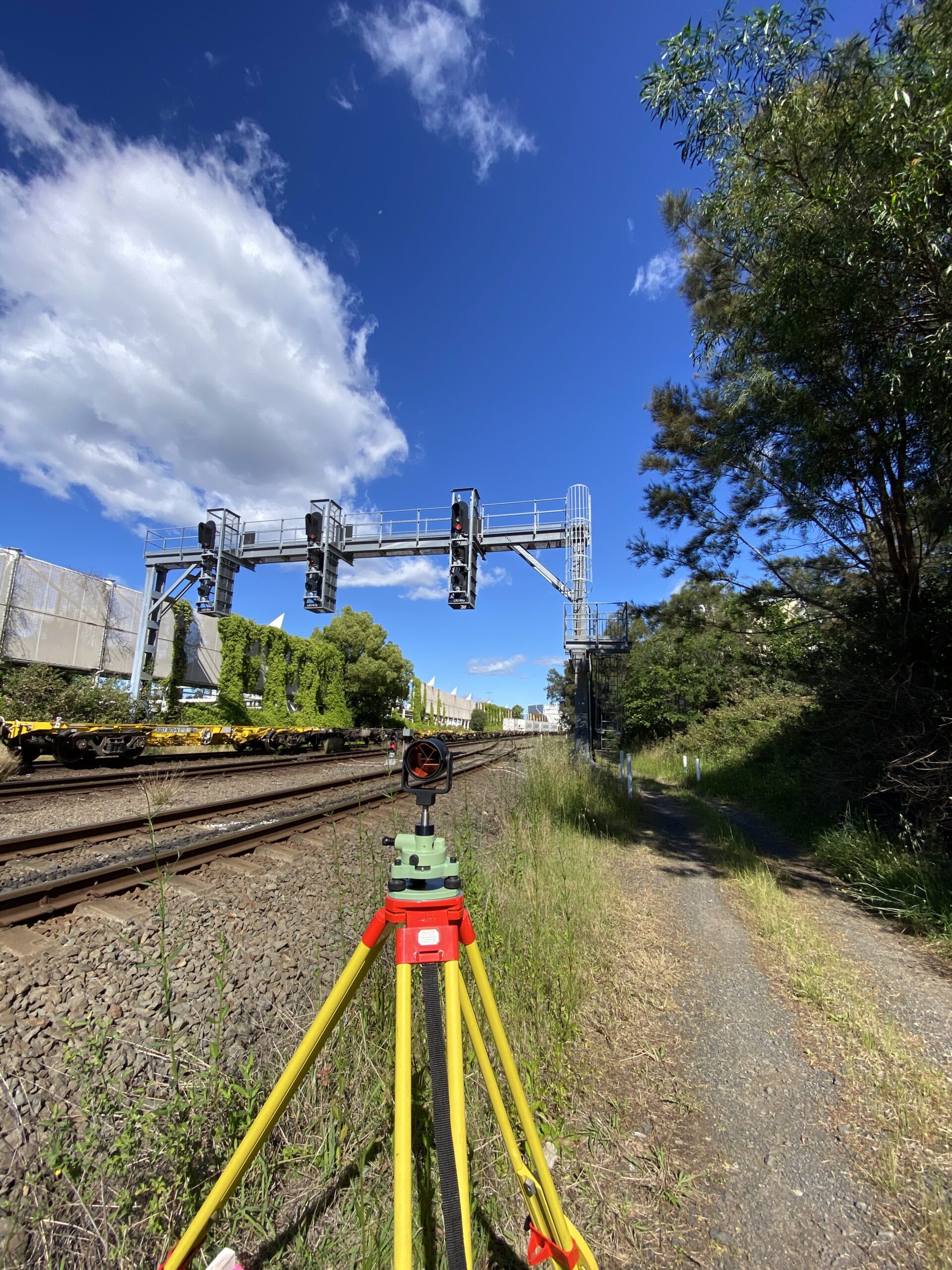

• Signalling infrastructure set-out
• Control network establishment and maintenance

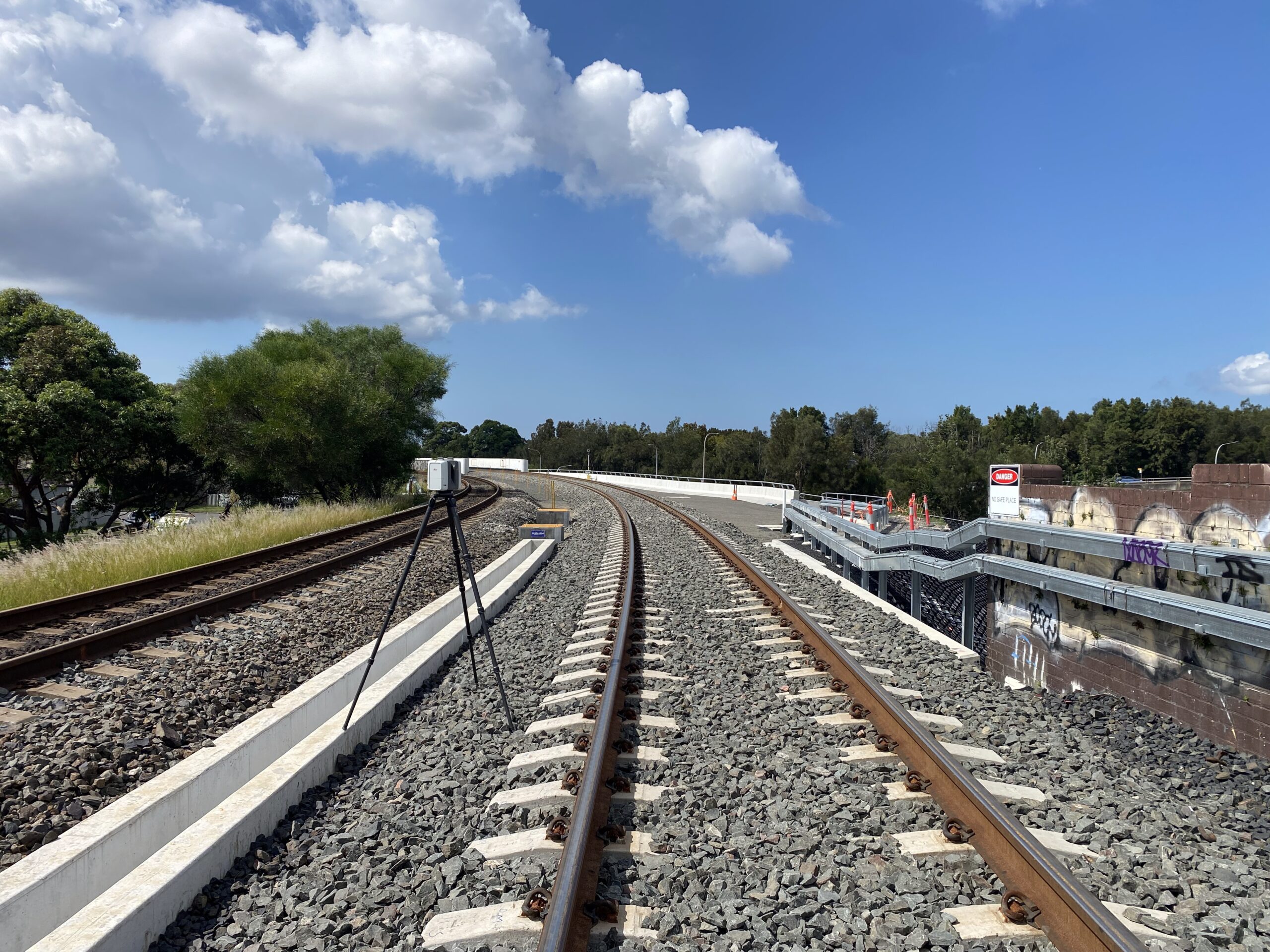

• Rail geometry and as-built surveys to ARTC standards

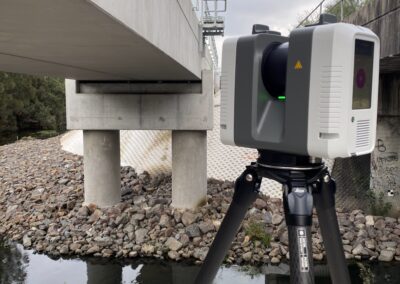

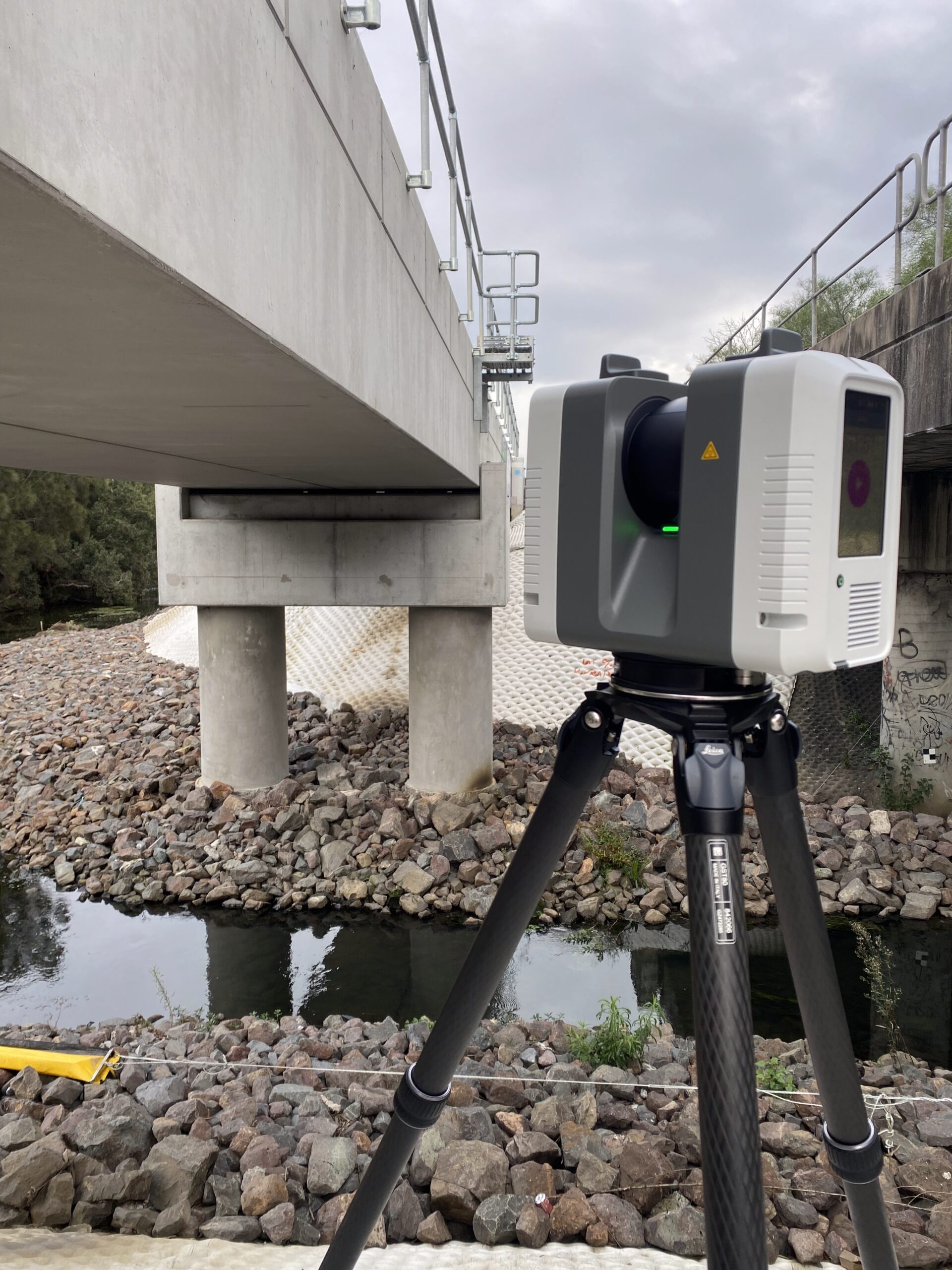

• 3D laser scanning
• Data calculations and EOM reporting

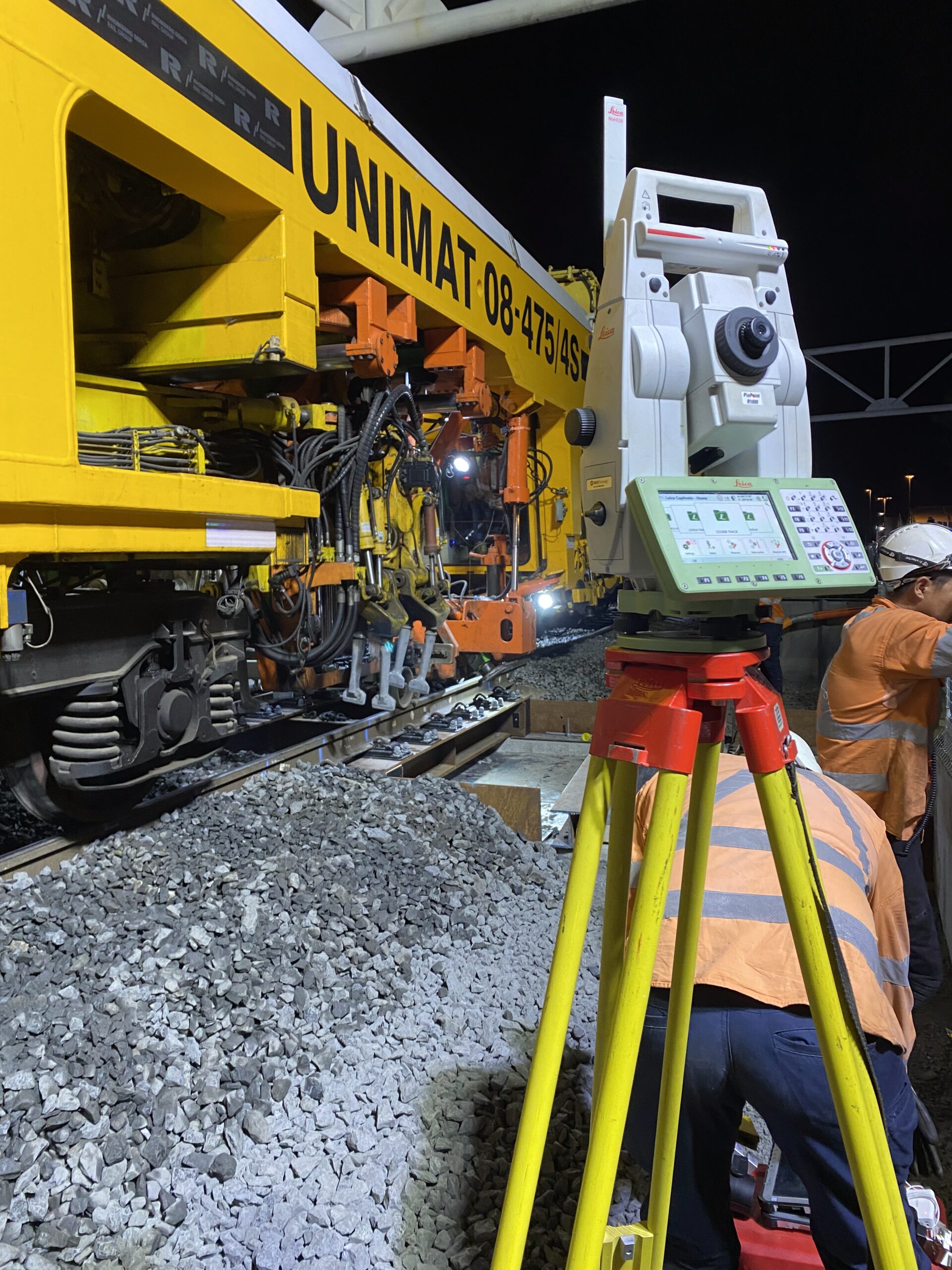

• Night shift and rail possession survey coverage (up to 22 surveyors at peak)
• Multi-crew deployment across concurrent work fronts in tight urban corridor
