Road & Civil Surveys provided construction surveying support for the Warringah Freeway Upgrade — a $1.18 billion project upgrading four kilometres of one of Australia’s most complex and heavily trafficked motorway corridors, carrying over 250,000 vehicles per day through North Sydney.

Delivered by the CPB Contractors / DT Infrastructure Joint Venture for Transport for NSW, the project involves the construction of 9 new bridges, 12 retaining walls, and 3 cut-and-cover tunnels, along with major earthworks, pavement upgrades, bus lane infrastructure, and 2.5 kilometres of new cycleways. The upgrade forms a critical link between the future Western Harbour Tunnel and Beaches Link, reshaping Sydney’s northern motorway network.

Our Role

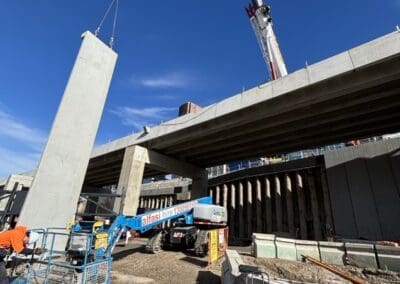

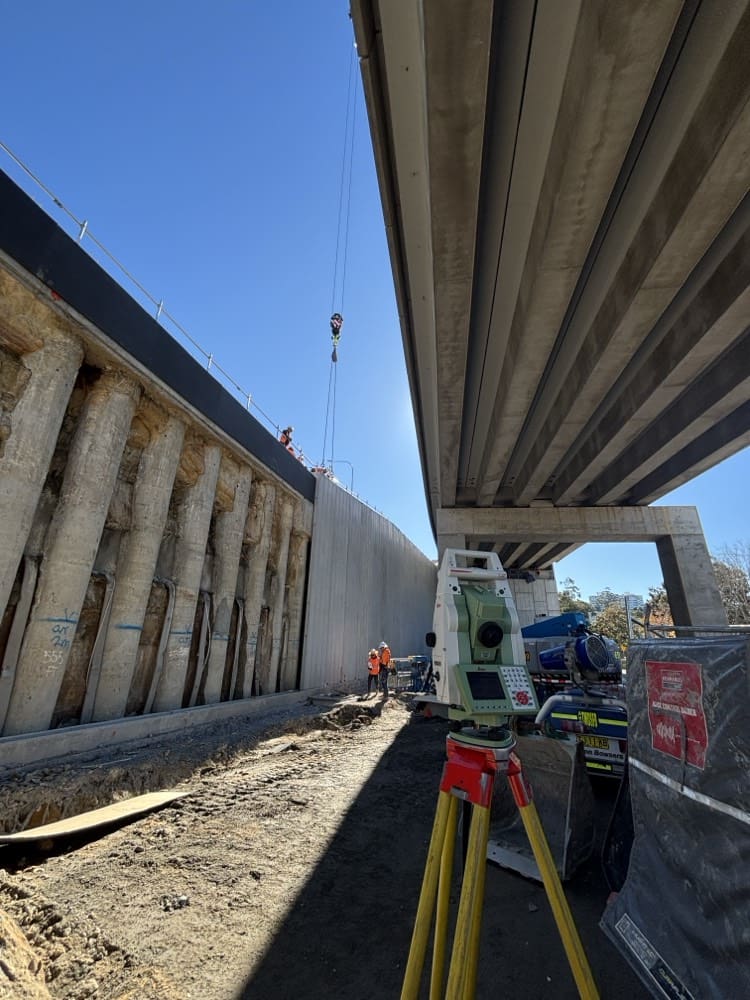

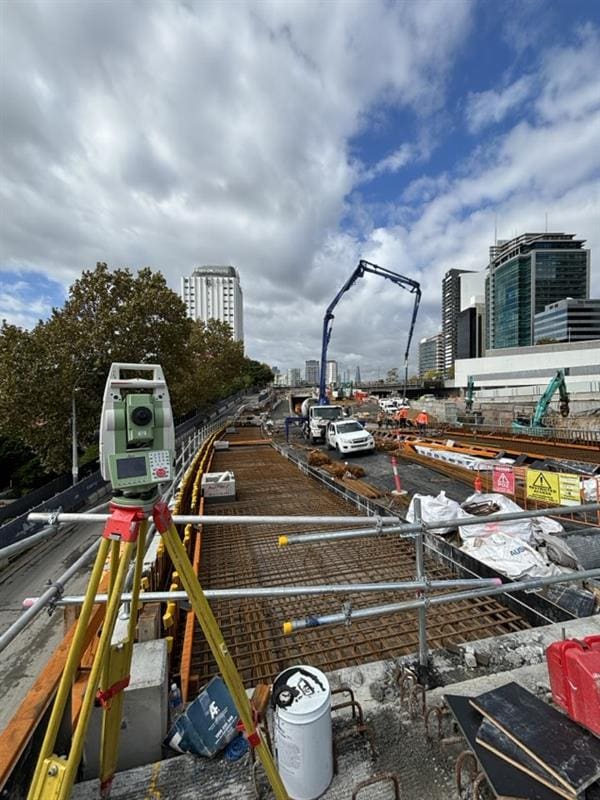

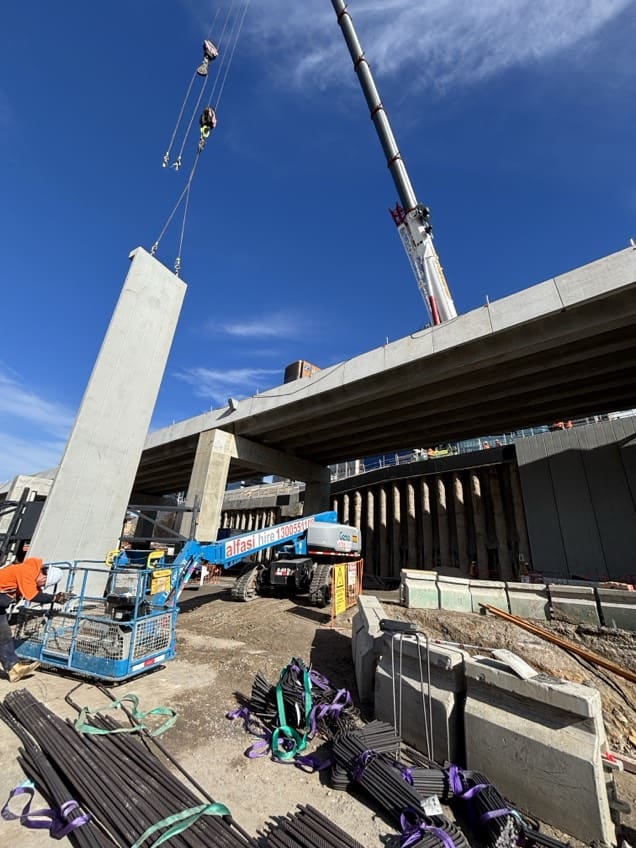

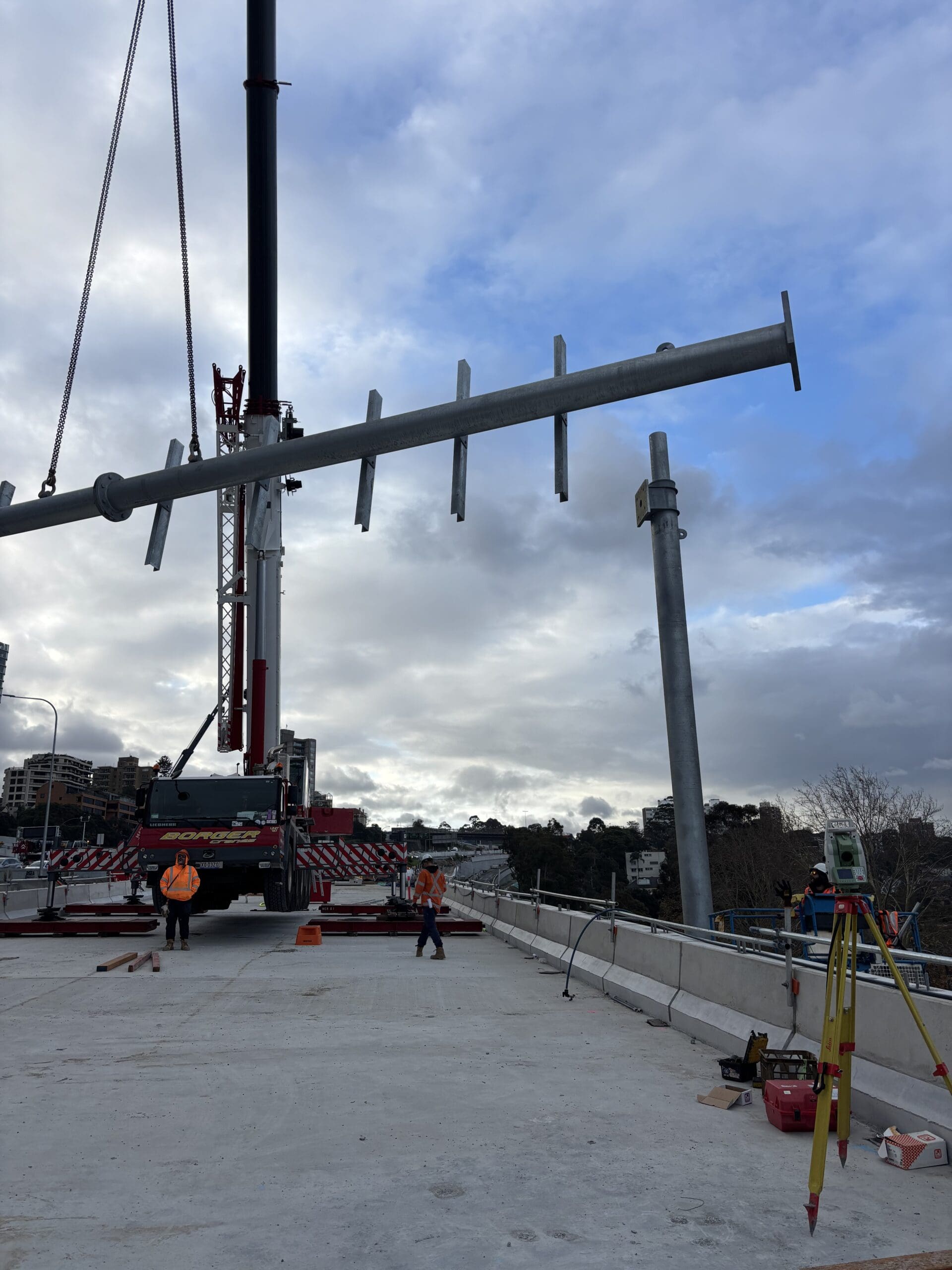

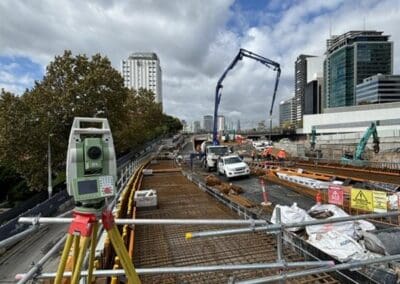

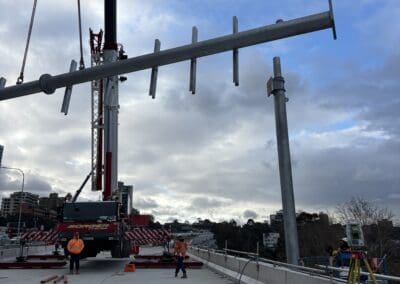

RCS provided survey support across bridges and structures, retaining walls, earthworks, and pavements — working within one of the most constrained live-traffic environments in the country. With the freeway remaining operational throughout construction, every survey task required precise coordination with traffic staging, complex road closure windows, and constantly shifting work zones.

Our team delivered night shift survey coverage during scheduled road closures, enabling critical construction activities — including structural set-out, pavement works, and verification — to be completed within tight time windows where delays directly impact the travelling public and program.

Driving Value

On a project of this complexity, where 250,000 vehicles pass through the work zone daily, survey accuracy isn’t just a quality requirement — it’s a safety imperative. Misalignment on a bridge bearing, a retaining wall footing, or a pavement tie-in within a live motorway corridor carries consequences that go well beyond rework.

RCS delivered value to the CPB/DTI team through disciplined execution under pressure — maintaining survey accuracy and continuity across staged works, shifting traffic configurations, and compressed night-shift programs. Our structural monitoring scope provided the project team with reliable movement data on adjacent structures and assets, supporting engineering assessment and ensuring construction activities weren’t adversely impacting surrounding infrastructure.

By delivering consistent, construction-ready data within the constraints of one of Sydney’s busiest corridors, RCS helped the project team maintain program certainty and manage risk across a highly visible, high-stakes delivery environment.

• Construction surveying and set-out for bridges, structures, retaining walls, earthworks, and pavements
• Night shift and road closure survey coverage
• Structural monitoring of adjacent assets and infrastructure
• Verification and as-built surveys
• Survey coordination across staged works and live traffic interfaces
